Outside Air Plenum

Challenge Accepted

• Bring OA from louver to shaft 30ft away for new exhibit

‍
• Duct path – impossible!

‍
• Existing masonry OA plenum no longer code compliant

‍
• Minimize ventilation shut down period

‍

Client

Project Type

Mechanical Infrastructure

Service Sector

Historic Museum

Challenge Met

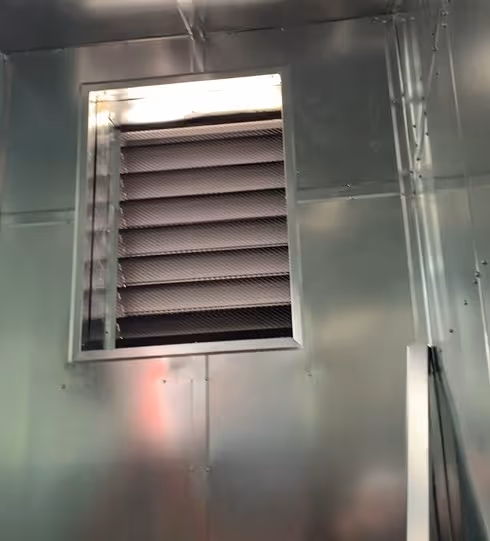

Worked with GC to install metal studs on masonry and sheet metal skin all the way to the shaft
Insulate stud cavity
Less costly
Shortened schedule by 3 weeks
BONUS– implemented this same solution on another project 2 months later
